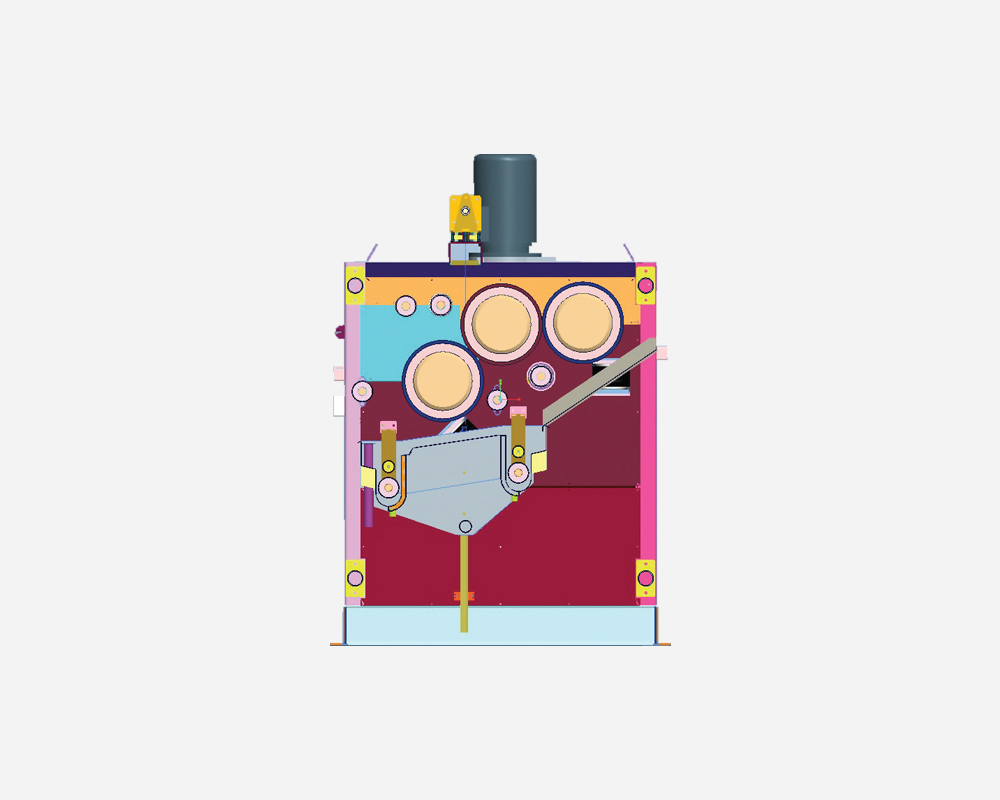

INTERGRATED PADDER UNIT (SQUEEZING AND FINISHING)

EF-F3C/3

It is designed for squeezing and finishing process of knitted and woven fabrics at a single padder unit. Mainly the padder is preferred due to less space requirement, low energy costs and easy to operate at inlet of stenter or dryer machines.

  • Stainless body, chemical finishing tank and side casing sheets.

  • Spiral expander rollers prior to each nip rollers.

  • Separate overflow system for squeezing and finishing liquid tanks.

  • Finishing tank with pneumatic movement and indirect steam heating.

  • Overflow, level control, filling and discharging systems.

  • Spraying system prior to squeezing rollers.

  • Electrical panel and pneumatic system equipments mounted to main frame of padder.

  • The diameters of squeezing, finishing and support roller is 395 mm.

  • Squeezing roller is bow, rubber coated 92 – 95 Shore A.

  • Finishing padder rubber coated, bow squeezing rollers 85-88 Shore A.

  • Support driven roller is flat and ebonite coated.

  • Squeezing roller for finishing padder is bow and rubber coated 85 Shore A.

  • Linear squeezing pressure is 50 N/cm.

  • Terms of use with max. 6 bar air pressure by means of pneumatic bellows system.

  • The main drive group with direct coupling connection and flexible system.

  • Linear pressure, 500 N/cm.

  • Water spraying pipe to clean the fabric before entering squeezing rollers.

  • Rubber cover hardness, 92° – 95° Shore for squeezing padder, 85° – 88° Shore for finishing padder.

  • Stainless idler transfer rollers.

  • Upper roller is bow, and lower roller is flat shape for homogenous squeezing effect.

  • Hypalon – Rubber coated squeezing rollers.

  • Vertically located 2 pcs rollers, 290 mm diameter.

  • Tension control dancing roller unit with pneumatic system, two idler rollers and linear potentiometer system.

  • 11 kW 3000 rpm AC motor drive system.

  • Transparent, preservation and safety caps.

  • Water shut off system when machine stops.
