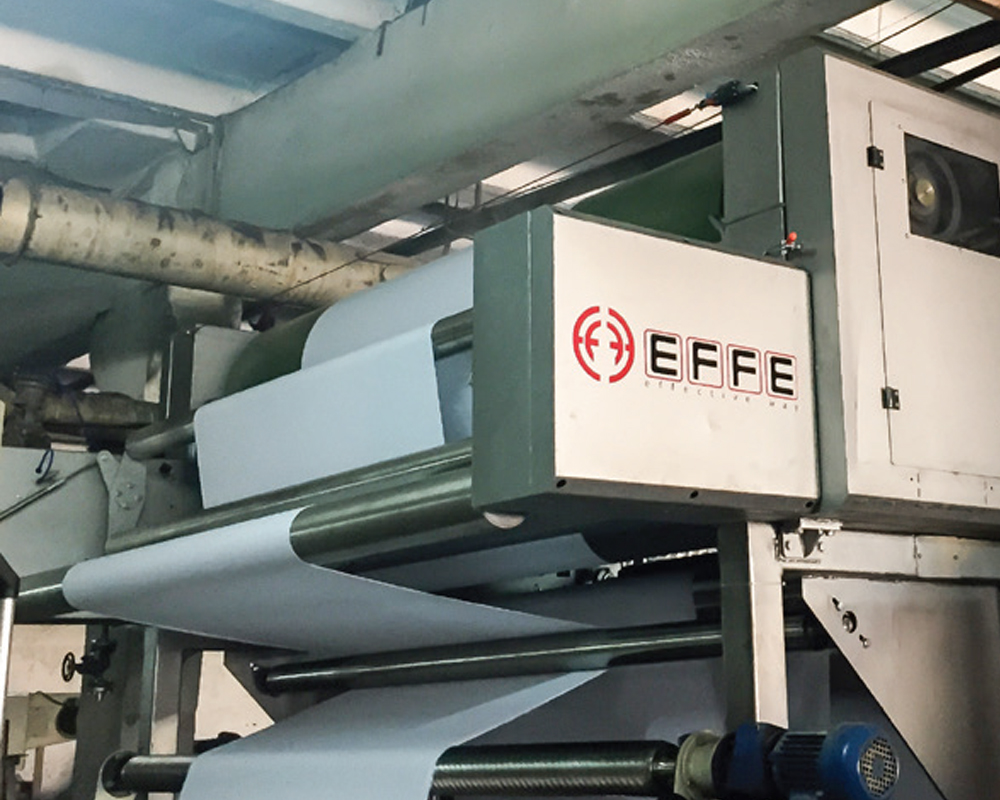

PRE-DRYER UNIT (STEAM HEATED CYLINDERS)

EF-BSD

The unit is designed and produced for pre-drying process of knitted fabrics after single or double padder applications. Main advantages of pre-drying unit are increased production speed, better fabric surface touch and water evaporation process prior to drying chambers.

Unit space saving structure easily adapts all kinds of stenter machine and drying machine inlet. Production range is between 1800 – 2800 mm. Thermal oil heated cylinders can be produced upon request.

  • Spiral expander group prior to steaming cylinders.

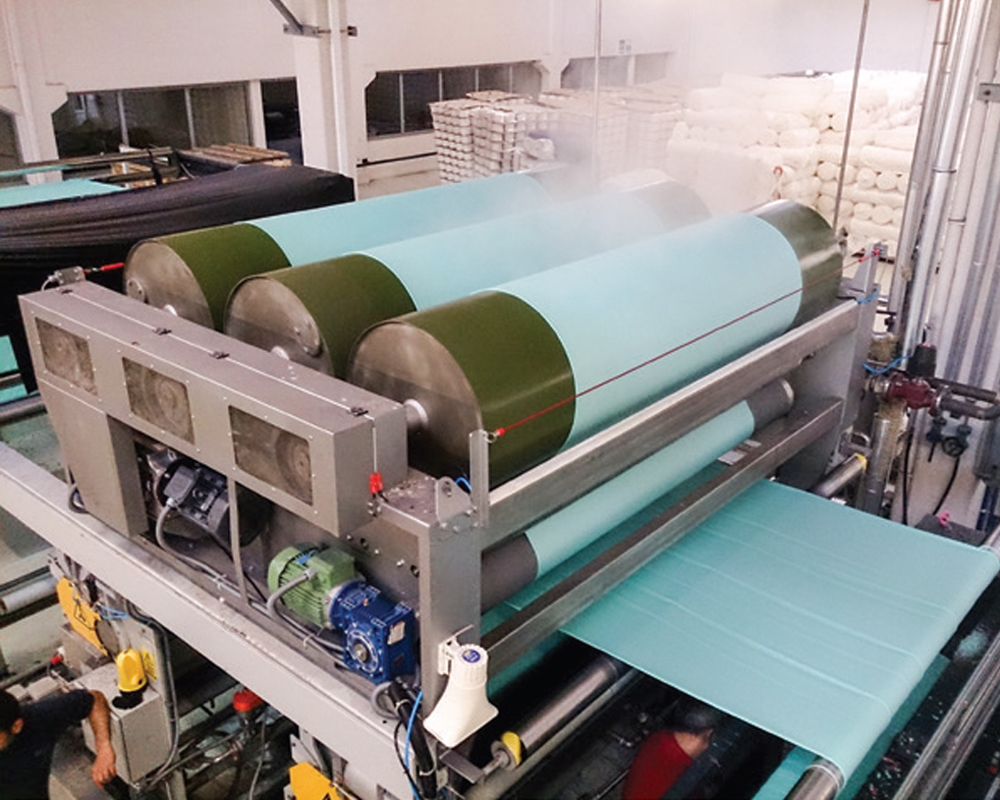

  • 3 pcs, 600 mm diameter teflon coated steam base cylinders.

  • Driven pull-in roller and dancing roller for tension free fabric transportation between pre-drying unit and weft straightener unit.

  • For 3 pcs steam roller: 1 pcs 4kW motor- gearbox driven system, AC inverter controlled, Teflon coated cylinders

  • Driven controlled pull in roller and compensating group for fabric tension control.

  • Idler rollers for fabric maximum rolling on steam cylinders.

  • Driven roller unit between pre drying unit and weft straightener unit is AC controlled.
